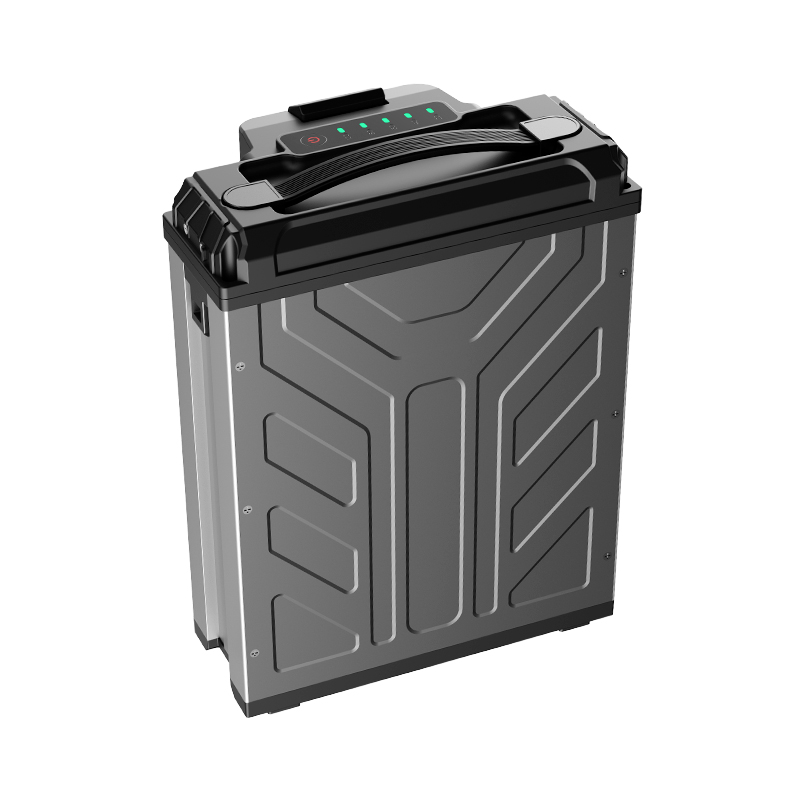

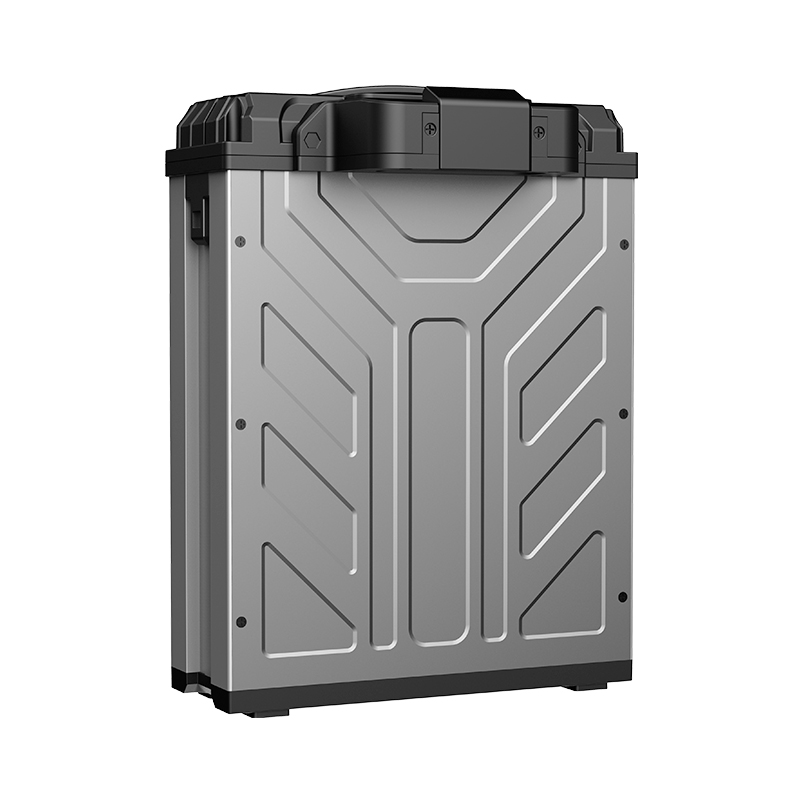

Plug and Unplug Model 18S-30Ah
The new-generation 5C fast-charging series cells boast excellent performance, enabling 5C charging and 10C discharging. They feature an extended cycle life of over 1,000 times, along with an all-aluminum body, a lightweight structure, and outstanding heat dissipation performance.
- Nominal Capacity: 30Ah
- Nominal Voltage: 68.4V
- Configuration: 18S1P
- Rate: 5C/10C/20C
- Power: 2052Wh
- Size(mm±5%): 120*267*320mm
- Weight(g±5%): 14800g
CONTACT US
Lithium Battery and Nickel-Metal Hydride Battery Center
Tel: 176 6535 6420
Email: wayne@vigorpower.cn
Starting Power Supply Market Center
Tel: 136 7003 5836
Email: leah@vigorpower.cn
FREE CONSULTATION TO GET A QUOTE
—— HOT SELLING MODELS LIST ——
| Nominal Capacity | Nominal Voltage | Configuration | Rate | Power | Size(mm±5%) | Weight（g±5%） |
|---|---|---|---|---|---|---|
| 20Ah | 53.2V | 14S1P | 5C/10C/20C | 1064Wh | 92*235*325mm | 7800g |
| 30Ah | 53.2V | 14S1P | 5C/10C/20C | 1596Wh | 92*235*325mm | 10400g |
| 20Ah | 68.4V | 18S1P | 5C/10C/20C | 1368Wh | 120*267*320mm | 12500g |
| 30Ah | 68.4V | 18S1P | 5C/10C/20C | 2052Wh | 120*267*320mm | 14800g |
—— APPLICATION SCENARIOS ——
Agri
Agri
Logistics
Mapping
