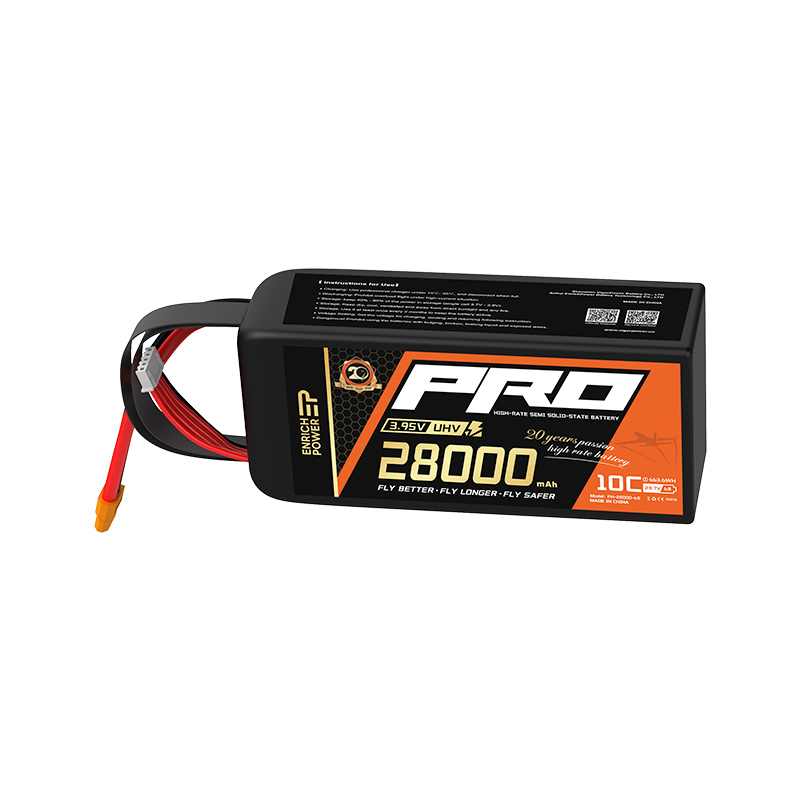

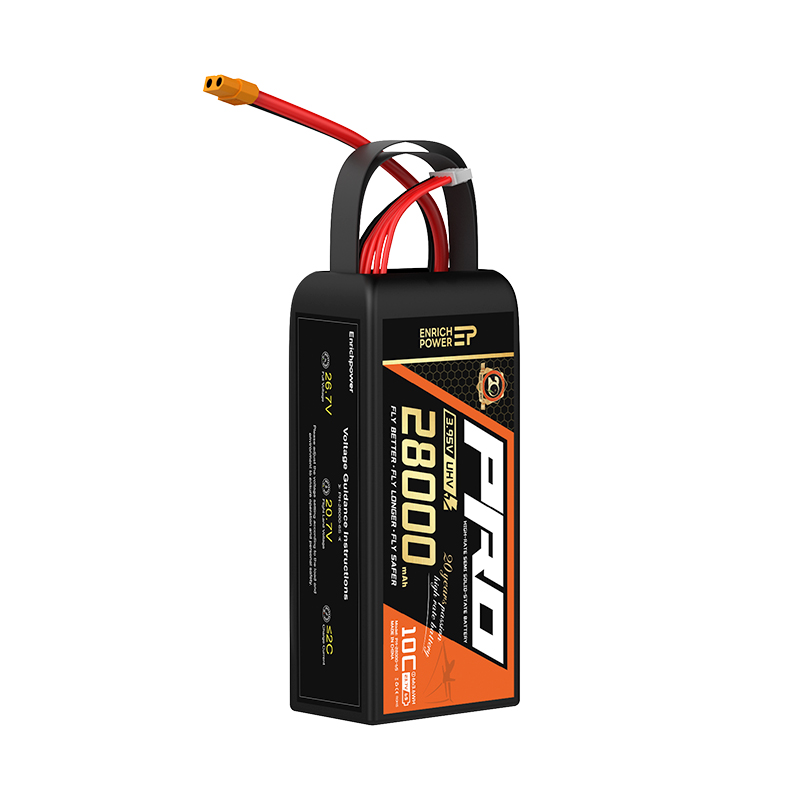

3.95V Super High Voltage High Rate-28Ah
The energy density reaches 280Wh/kg, and it supports continuous high-rate discharge of 5C-10C, providing instantaneous high-current output capability for logistics drones. Its cycle life exceeds 1,000 times (with a capacity retention rate of ≥80%), and it supports 2C fast charging, with charging efficiency 35% higher than that of traditional solutions.
- Nominal Capacity: 28Ah
- Nominal Voltage: 23.7V
- Configuration: 6S1P
- Rate: 2C/5C/10C
- Power: 663.6Wh
- Size(mm±5%): 70*89*200mm
- Weight(g±5%): 2600g
CONTACT US
Lithium Battery and Nickel-Metal Hydride Battery Center
Tel: 176 6535 6420
Email: wayne@vigorpower.cn
Starting Power Supply Market Center
Tel: 136 7003 5836
Email: leah@vigorpower.cn
FREE CONSULTATION TO GET A QUOTE
—— HOT SELLING MODELS LIST ——
| Nominal Capacity | Nominal Voltage | Configuration | Rate | Power | Size(mm±5%) | Weight（g±5%） |
|---|---|---|---|---|---|---|
| 17Ah | 23.7V | 6S1P | 2C/5C/10C | 402.9Wh | 57.5*74*180mm | 1660g |
| 17Ah | 47.4V | 12S1P | 2C/5C/10C | 805.8Wh | 113.5*74*180mm | 3180g |
| 20Ah | 23.7V | 6S1P | 2C/5C/10C | 474Wh | 51.5*89*200mm | 1980g |
| 20Ah | 47.4V | 12S1P | 2C/5C/10C | 948Wh | 101.5*89*200mm | 3820g |
| 25Ah | 23.7V | 6S1P | 2C/5C/10C | 592.5Wh | 63.5*89*200mm | 2380g |
| 25Ah | 47.4V | 12S1P | 2C/5C/10C | 1185Wh | 124.5*89*200mm | 4614g |
| 28Ah | 23.7V | 6S1P | 2C/5C/10C | 663.6Wh | 70*89*200mm | 2600g |
| 28Ah | 47.4V | 12S1P | 2C/5C/10C | 1327.2Wh | 137.5*89*200mm | 5070g |
—— APPLICATION SCENARIOS ——
Logistics
Logistics
Load Lifting
Load Lifting
