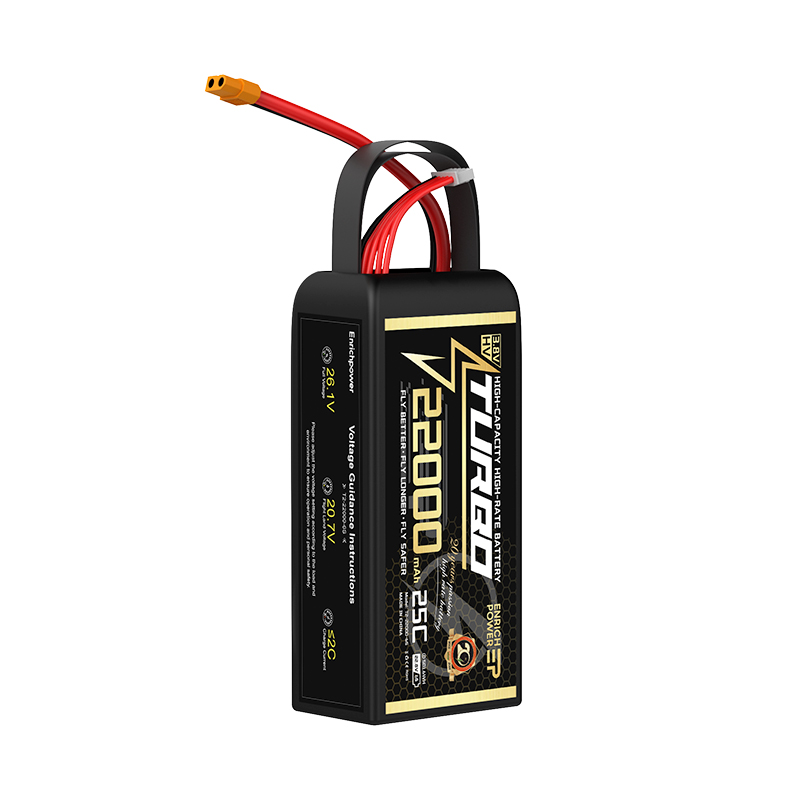

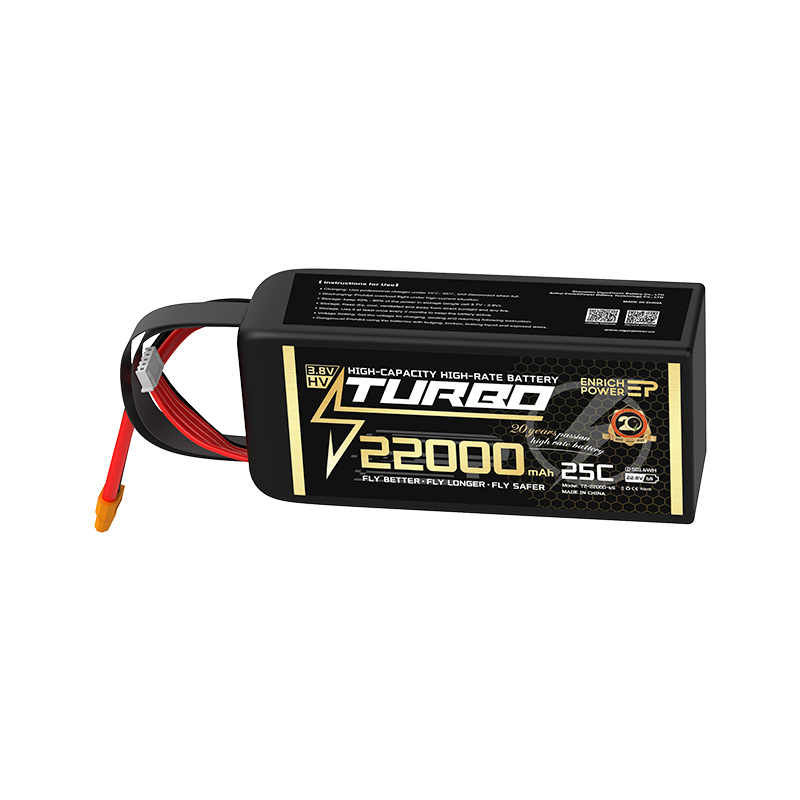

3.8V High Rate Large Capacity-22Ah
It delivers powerful rate performance, supporting 10C continuous discharge, 25C pulse discharge, and 2C continuous charging, meeting 90% of agricultural plant protection needs. Even under high-rate discharge, it maintains an ultra-high voltage platform—over 90% of the capacity can be released at 3.5V and above. It provides strong power throughout the process, with extremely high safety even in the later stage of heavy-load flights.
- Nominal Capacity: 22Ah
- Nominal Voltage: 22.8V
- Configuration: 6S1P
- Rate: 2C/10C/25C
- Power: 501.6Wh
- Size(mm±5%): 59.5*89*200mm
- Weight(g±5%): 2320g
CONTACT US
Lithium Battery and Nickel-Metal Hydride Battery Center
Tel: 176 6535 6420
Email: wayne@vigorpower.cn
Starting Power Supply Market Center
Tel: 136 7003 5836
Email: leah@vigorpower.cn
FREE CONSULTATION TO GET A QUOTE
—— HOT SELLING MODELS LIST ——
| Nominal Capacity | Nominal Voltage | Configuration | Rate | Power | Size(mm±5%) | Weight（g±5%） |
|---|---|---|---|---|---|---|
| 17Ah | 22.8V | 6S1P | 2C/10C/25C | 387.6Wh | 62*74*180mm | 1850g |
| 17Ah | 45.6V | 12S1P | 2C/10C/25C | 775.2Wh | 122*74*180mm | 3550g |
| 22Ah | 22.8V | 6S1P | 2C/10C/25C | 501.6Wh | 59.5*89*200mm | 2320g |
| 22Ah | 45.6V | 12S1P | 2C/10C/25C | 1003.2Wh | 117.5*89*200mm | 4500g |
| 28Ah | 22.8V | 6S1P | 2C/10C/25C | 638.4Wh | 71.5*89*200mm | 2900g |
| 28Ah | 45.6V | 12S1P | 2C/10C/25C | 1276.8Wh | 141*89*200mm | 5670g |
